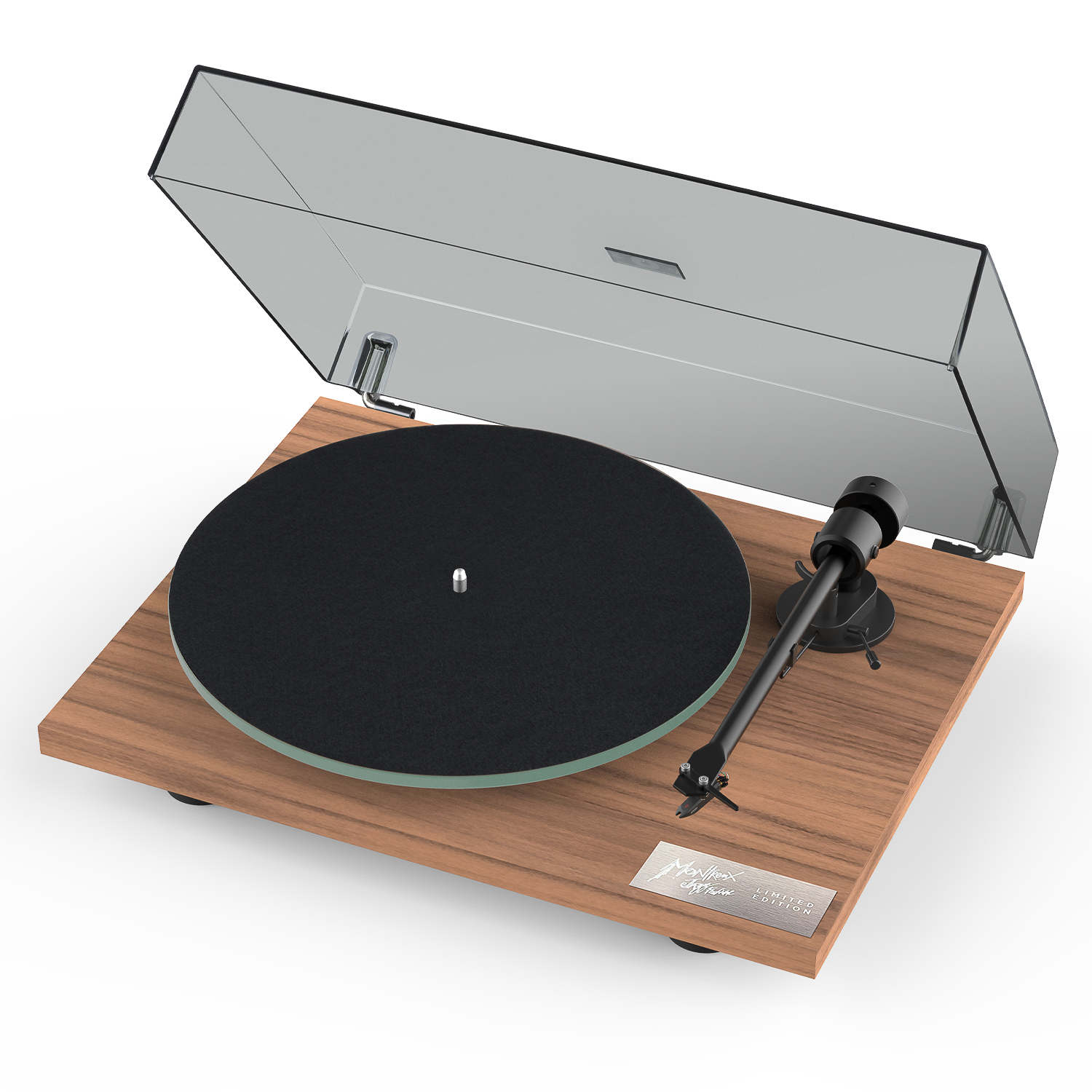

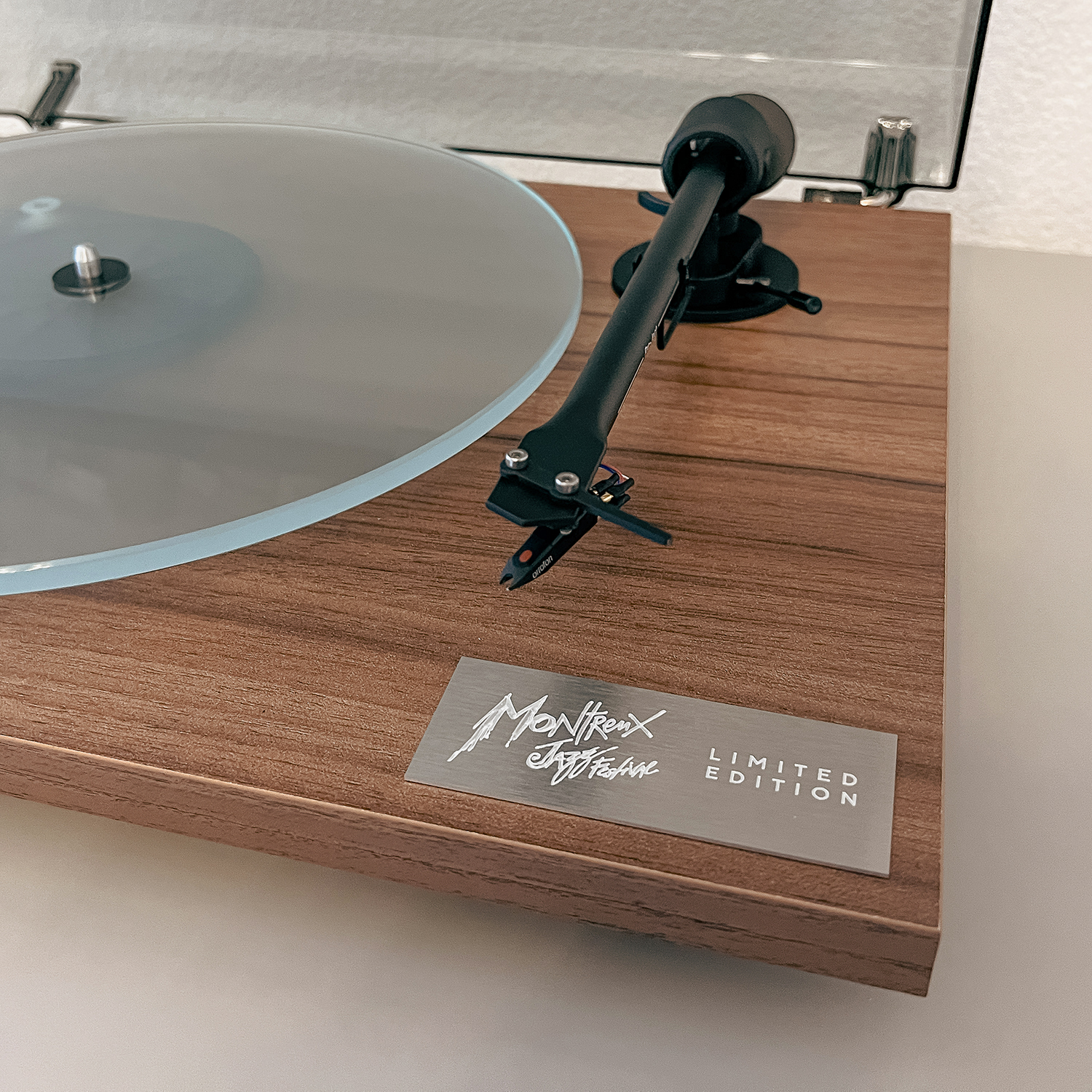

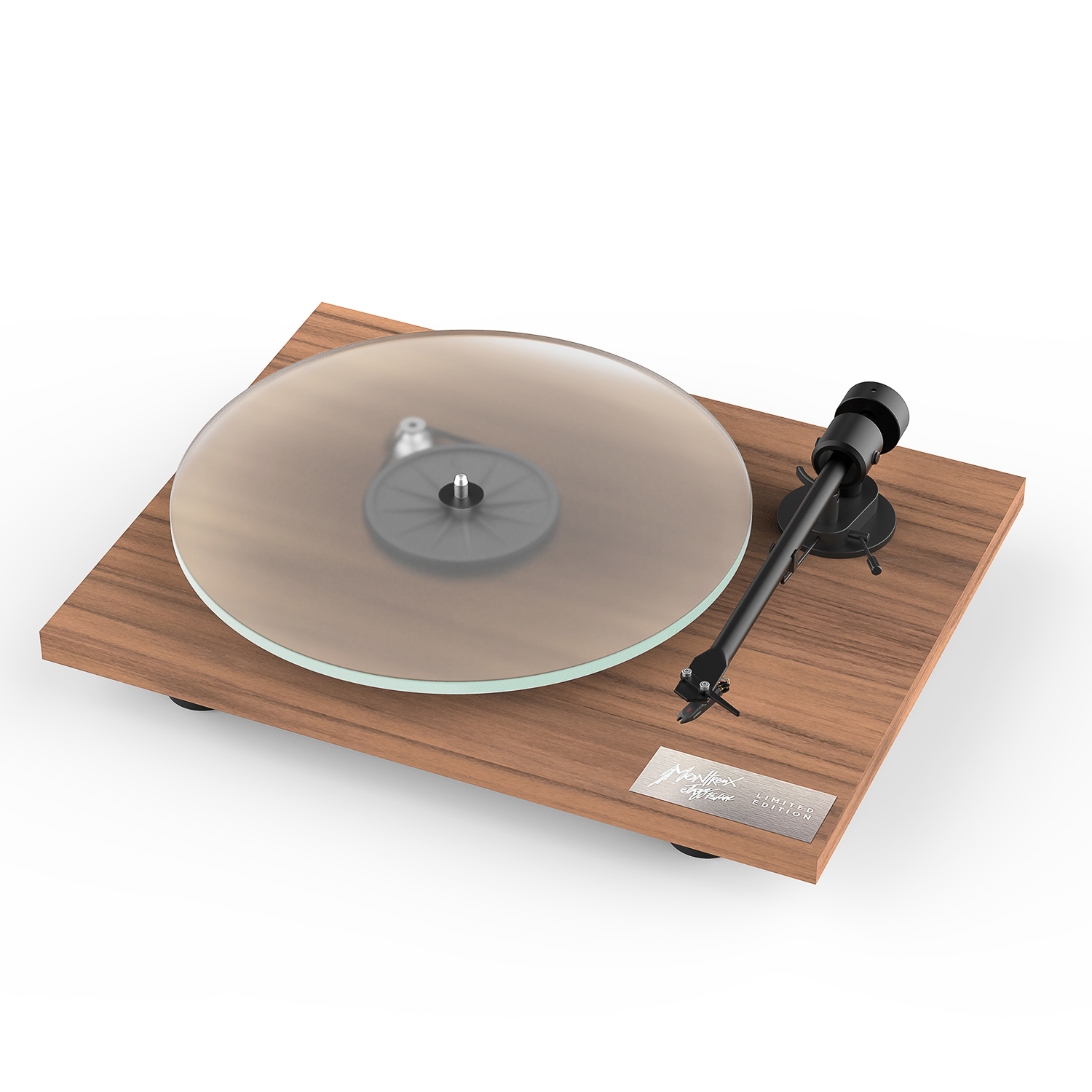

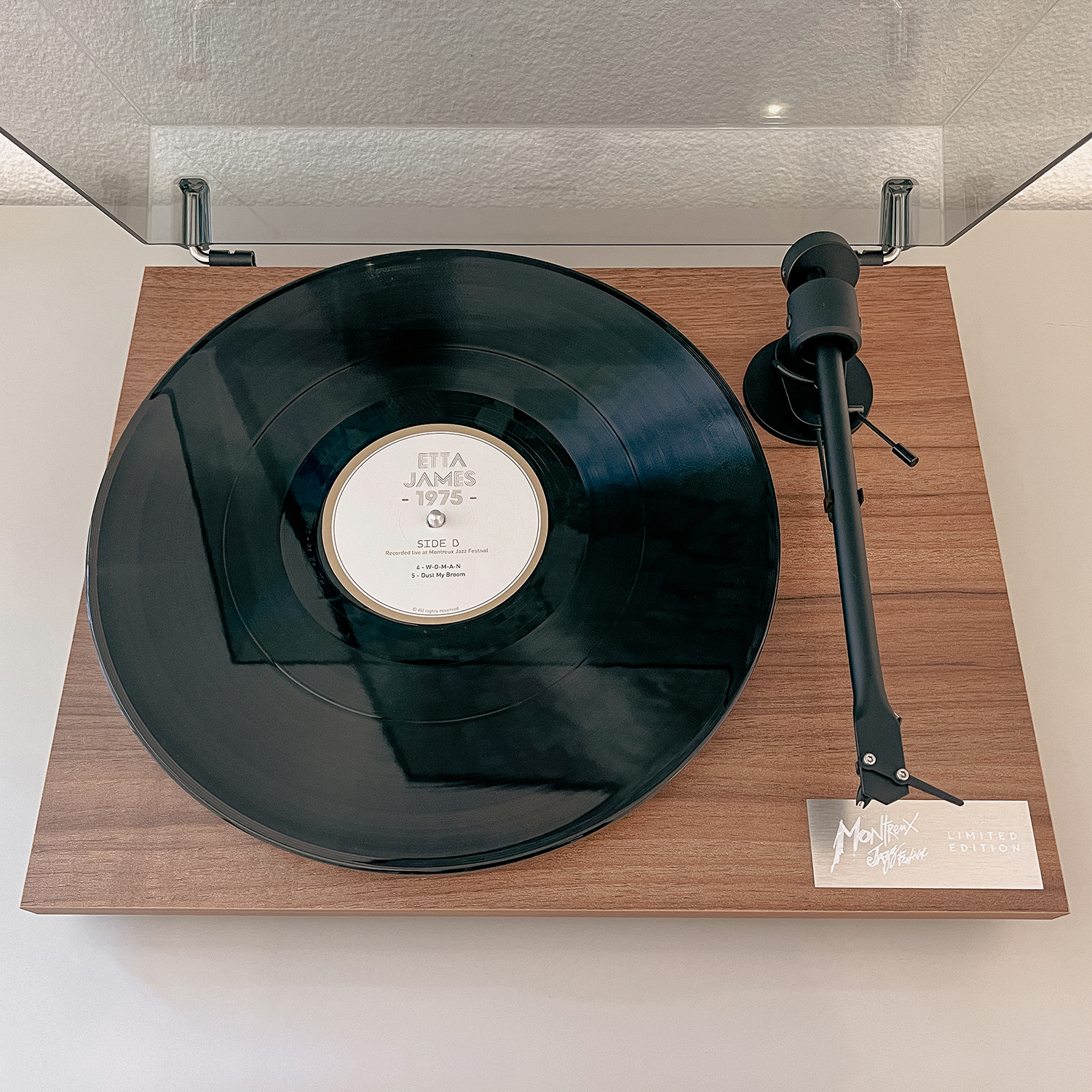

Turntable Pro-Ject T1 Walnut, Limited Edition

CHF 480

A New Generation of Turntable – Made in Europe

The stylish CNC-machined plinth of the T1 features no plastic parts and is carefully manufactured to ensure there are no hollow spaces inside, therefore avoiding unwanted vibrations within the chassis. Carrying this philosophy through the design, the glass platter is also a heavy, zero-resonance design. Finally, the purpose-chosen turntable feet also do a good job of isolating the T1 from ambient vibrations around your hi-fi system. In the T1 the motor drives a belt-system, attached to a newly designed sub-platter, which is mounted into an ultra-precise 0.001mm main bearing with a hardened steel axle and brass bushing – just like our Essential III turntables. The tonearm new tonearm has an effective length of 8.6”. This one-piece aluminium tonearm also features low-friction bearings for absolute accuracy in use. The T1 comes with a pre-adjusted Ortofon OM 5E Moving Magnet cartridge and is ready to use right out of the box. Also super shielded, semi-symmetrical, low-capacitance Pro-Ject phono cables are included.

In the box:
T1 with Ortofon OM 5E cartridge
Directly soldered Connect it E Phono Cable
Felt mat
Dust cover
Adapter for 7“ singles
Power supply
Allen key, stylus pressure gauge

In stock

SKU: 3200900932021 Categories: , ,


Description

Features

  • Belt-driven
  • Anti-resonant sub-platter design
  • Heavy 8mm, zero-resonance blasted-glass platter
  • Precision CNC‘d heavy full chassis: NO hollow spaces, NO plastic
  • Ortofon OM5e moving magnet pickup
  • 8,6“ highly precise and light aluminium tonearm
  • Low friction, vibration free tonearm bearing
  • One-piece tonearm design with integrated headshell
  • Super shielded, semi-symmetrical, low-capacitance phono cables – purpose designed by Pro-Ject
  • Vibration absorbing feet
  • Elegant dustcover with adjustable hinges
  • Available in High-Gloss Black, Matt White and Walnut
  • Hand-made in Europe

Technical Specifications

  • Speed: 33,45 (manual speed change)
  • Principle: Belt drive
  • Speed variance: 33: 0.7% 45: 0.6%
  • Wow & Flutter 33: 0.25% 45: 0.23%
  • Platter: Heavy 8mm, blasted-glass platter with felt mat
  • Main bearing: Stainless steel/brass
  • Signal to noise: 65dB
  • Tonearm 8.6” aluminium
  • Effective arm length: 218.5 mm
  • Overhang: 22.0 mmEffective tonearm mass: 8.0 g
  • Counterweight for mass: 5 – 10g (pre-mounted)
  • Tracking force range: 0 – 50mN (17.5 mN pre-adjusted)
  • Included accessories: dustcover, feltmat
  • Built-in Power Supply: 230V 50Hz (US: 110V 60Hz)
  • Power consumption: 3 Watt max
  • Dimensions: 415x100x335 mm (WxHxD)
  • Weight: 3.8 kg net

Warranty

  • 2 years warranty from date of purchase
  • Wearing parts such as belts and heads are not covered by the warranty

Additional information

Weight 6 kg
